Product Standard：

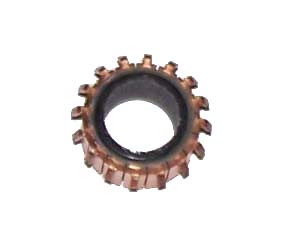

Prodcut Code：16L147B
Sheet Number：16
Outside Diameter ： Ф29 +0.05
-0.05
Diameter of Internal Hole： Ф18 +0.03
+0.01
Outside Diameter of Hook(Lifting Sheet)：35-0.50
Total Axial Length：16.2±0.20
Length of segment：15.4
Length of hook(Welding Line Slot)：4.7±0.20
Angles of Hook：
Length of Mica Slot：over
Depth of Mica Slot：
Wide of Mica Slot：1.1+0.05
