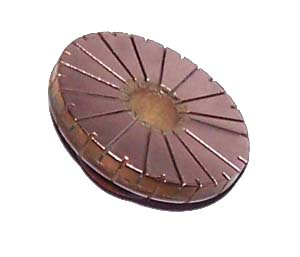

Product Standard：
Prodcut Code：16L003
Sheet Number：16
Outside Diameter ： Ф50 +0.05
-0.05
Diameter of Internal Hole： Ф13 +0.03
+0.01
Outside Diameter of Hook(Lifting Sheet)：50-0.50
Total Axial Length：18.5±0.20
Length of segment：8.5
Length of hook(Welding Line Slot)：0.4±0.20
Angles of Hook：
Length of Mica Slot：over
Depth of Mica Slot：
Wide of Mica Slot：0.6+0.05
