Product Standard：

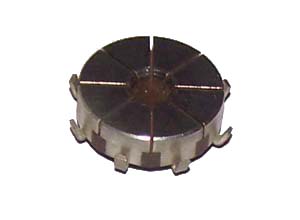

Prodcut Code：8L002
Sheet Number：8
Outside Diameter ： Ф20.4 +0.05
-0.05
Diameter of Internal Hole： Ф5 +0.03
+0.01
Outside Diameter of Hook(Lifting Sheet)：24-0.50
Total Axial Length：8.7±0.20
Length of segment：6
Length of hook(Welding Line Slot)：3.5±0.20
Angles of Hook：
Length of Mica Slot：over
Depth of Mica Slot：
Wide of Mica Slot：0.9+0.05
